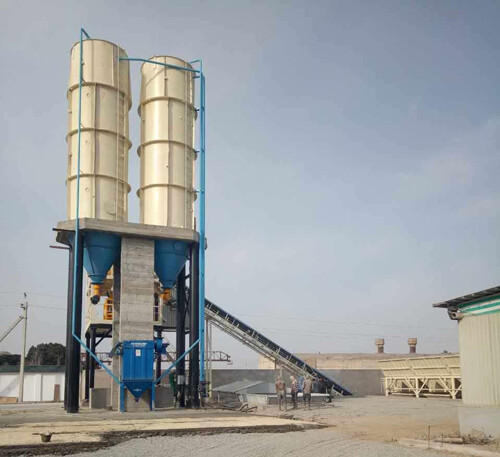

25M³/H CONCRETE BATCHING PLANT

0.00Rs

In stock

Product Details

Maximum productivity(m³/h)： 25.
Discharging height(m)： 1.5-3.8.
Working cycle time(s)： 72.
Outline dimension(mm)： 11693×13060×17245.
Total power (kw)： 50.
Total weight： 16T.

Model	HZS25	HZS35	HZS50	HZS75
Global parameter	Maximum productivity (m3/h)	25	35	50	75
Discharging height (m)	1.5–3.8	1.6–3.8	4.2	4.2
Working cycle time(s)	72	72	72	72
Outline dimension(mm)	11693 × 13060 × 17245	12922 × 13000 × 17245	15689 × 12500 × 18704	17608 × 12500 × 18704
Total power (kw)	50	75	88	110
Mixer	Model	JS500	JS750	JS1000	JS1500
Batcher	Model	PLD800	PLD1200	PLD1600	PLD2400
Pneumatic system	Air compressor	1.0–7	1.0–7	1.5–7	1.8–7
Discharge pressure(MPa)	0.8	0.8	0.8	0.8
Displacement (m3/min)	1.67	1.67	1.67	1.67
Motor power	5.5	5.5	7.5	11
Measurement system	Aggregate weighing accuracy	±2%	±2%	±2%	±2%
Cement weighing accuracy	±1%	±1%	±1%	±1%
Water weighing accuracy	±1%	±1%	±1%	±1%
Additive weighing accuracy	±1%	±1%	±1%	±1%

GOLDEN STEEL MILLS can easily cover its customers requests with its stationary concrete batching plants in different capacities and specifications.GOLDEN STEEL MILLS has a range of Stationary Concrete Batching Plants which have production capacity from 25 m³/h to 180 m³/h of one mixer.In addition the capacity of Stationary Concrete Batching Plants with double mixers on the same chassis can reach 240 m³/h to 360 m³/h.HZS 25 Concrete Batching Plants are composed of mixing batching and electrical control system etc. It is suitable for small-scale construction site.Theory Capacity: 25m³/hThe Mixing System: The mixer is JS500 twin shafts with arms screwed ensure shorter mixing time but higher evenness.Batching System: PLD800/Individual batching machine has adopted electric weighing automatically be applied for correction and measure.The batching aggregates can be 2-4 types. 2 m³ Basic Storage Bins Volume 800L Weighing Bins Volume 3kw Motor. Batching machine can be supplied as your requirements.Feeding System: Hopper feeder anti-block patents technology ensures forever non-block. Weighing system: The system has buffering device auto compensation function and very high weighing accuracy.Cement silo: Adoption of sheet-assembled structure can solve the problems for transportation.With the dust collector equipment it can prevent dust leakage efficiently and the brake device can prevent dust caking.Control system: PLY+PLC control system ensures high reliability Simple/Standard for optional as your requirements.HZS 25 Concrete Batching Plants provide below given advantages to the concrete producers:

High Production Performance.

High Quality and Precise Concrete Production (with Fully Automated Computerized Control System).

Different Layout Options according to Customer Requirements.

The Quantity of cement silo and screw conveyor can be choosed by users.

Modular Design Space-Saving Integrated Design Easy Installation and Removal.
